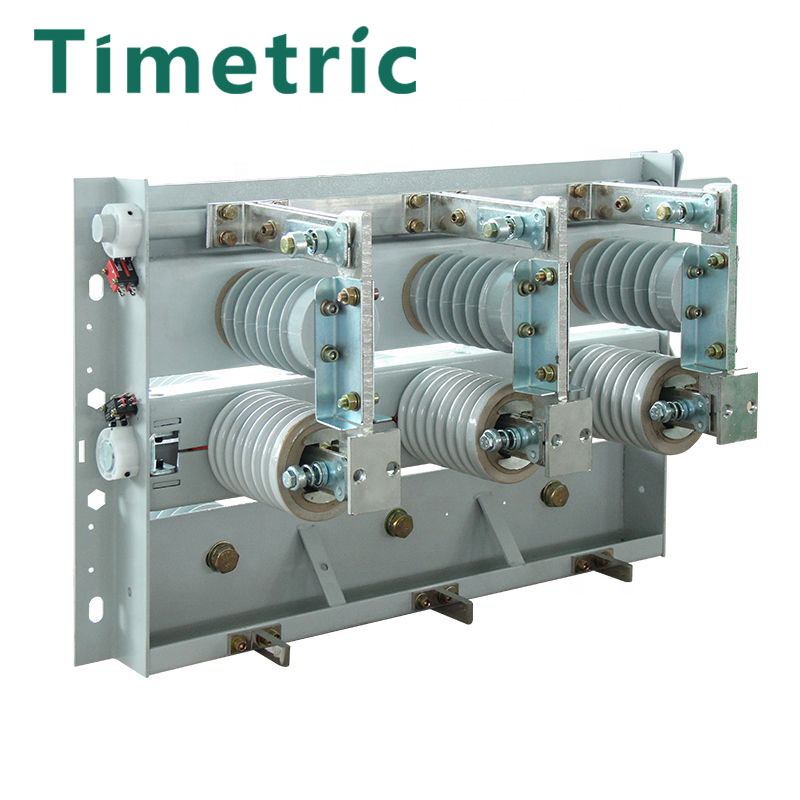

Isolation Switch

An isolation switch, also known as an isolator or disconnect switch, is an electrical switch used to isolate a circuit from its power source. It is designed to provide a safe and convenient method for electrical maintenance and repair work, and to ensure that electrical equipment can be de-energized before it is worked on.

The main components of an isolation switch include:

1. Contacts: These are the parts of the switch that make and break the electrical connection.

2. Operating mechanism: This is the part of the switch that opens and closes the contacts.

3. Enclosure: This is the housing that contains the contacts and operating mechanism, and provides protection from external factors such as dust and moisture.

Isolation switches are typically rated for high currents and voltages, and are commonly used in industrial and commercial applications. They are available in a variety of configurations, including:

1. Single-pole: This type of switch has one set of contacts and is used to disconnect one phase of a three-phase circuit.

2. Double-pole: This type of switch has two sets of contacts and is used to disconnect both phases of a three-phase circuit.

3. Triple-pole: This type of switch has three sets of contacts and is used to disconnect all three phases of a three-phase circuit.

Isolation switches offer several advantages over other types of switches, including:

1. Safety: They provide a simple and reliable method for isolating electrical equipment before maintenance or repair work is performed.

2. Convenience: They allow electrical equipment to be quickly and easily disconnected from its power source.

3. Flexibility: They can be used in a wide range of applications, including power distribution, motor control, and lighting.

Isolation switches should only be operated by trained and authorized personnel, and should always be properly labeled to ensure that they are used correctly.
