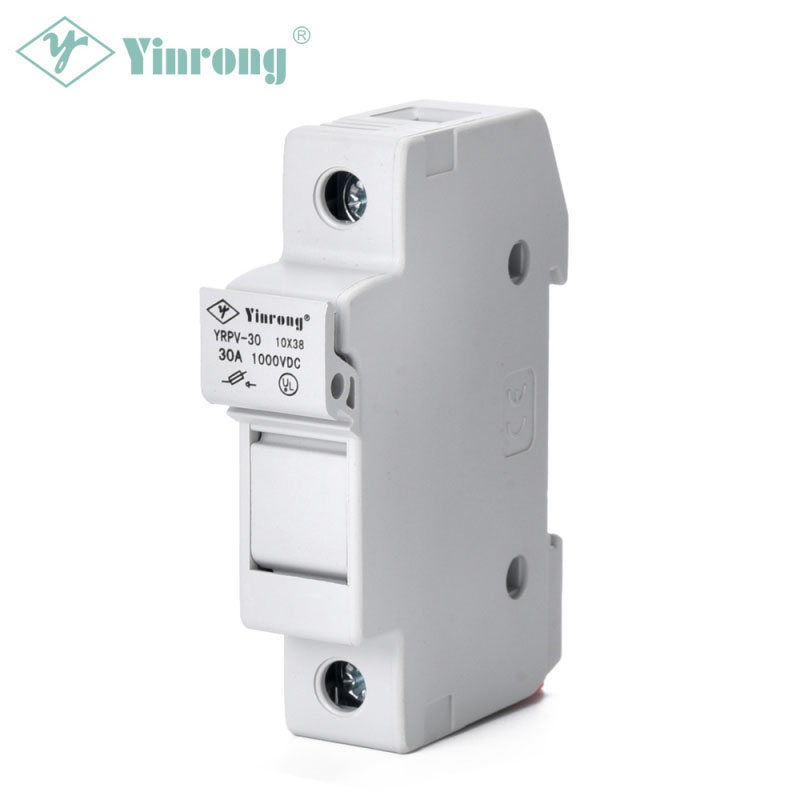

Solar PV DIN Rail Fuse Holder

A solar PV DIN rail fuse holder is a component used in solar photovoltaic (PV) systems to protect electrical circuits from overcurrent conditions. It is specifically designed to be mounted on a DIN rail, which is a standardized metal rail used for mounting various electrical devices.

The purpose of a fuse holder is to house a fuse, which is a device that breaks the circuit when it detects an excessive current flow. In a solar PV system, the fuse holder is typically used to protect the wiring between the PV modules and the inverter or charge controller.

Here are some key features and characteristics of a solar PV DIN rail fuse holder:

1. Mounting: It is designed to be easily installed on a DIN rail, which allows for convenient and organized mounting in electrical enclosures or control panels.

2. Fuse compatibility: It is compatible with fuses specifically designed for solar PV applications. These fuses are typically rated for DC (direct current) use and have appropriate voltage and current ratings for the system.

3. Current rating: The DIN rail fuse holder will have a specific current rating that corresponds to the maximum current it can safely handle. This rating should match or exceed the current capacity of the PV system to ensure proper protection.

4. Voltage rating: It will also have a voltage rating that should match the maximum voltage of the PV system. This ensures that the fuse holder can safely interrupt the circuit in case of an overcurrent event.

5. Fuse type: The fuse holder may accommodate different types of fuses, such as blade-type fuses or cartridge fuses. The choice of fuse type depends on the specific requirements and preferences of the system designer or installer.

6. Enclosure: The fuse holder may come with an enclosure to provide protection against environmental factors, such as dust, moisture, or accidental contact. The enclosure can also provide additional safety features like lockable covers or tamper-proof designs.

When selecting a solar PV DIN rail fuse holder, it is important to consider the specific requirements of your PV system, including the voltage and current ratings, as well as the type of fuses used. Consulting the system specifications, local electrical codes, and manufacturer recommendations will help ensure that you choose the appropriate fuse holder for your solar PV installation.
